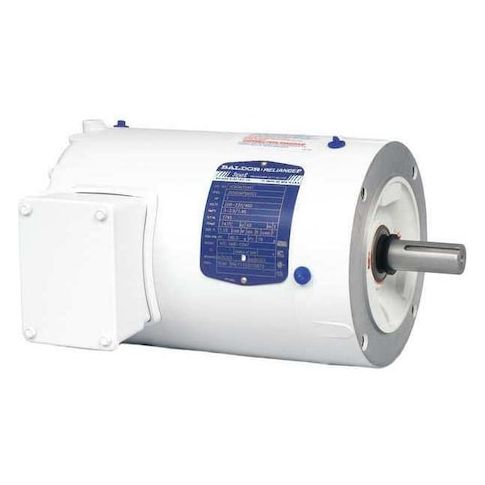

Three-Phase Washdown Motor, 2 hp HP, 143TC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:VEWDM3558T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053370
Three-Phase Washdown Motor, 2 hp HP, 143TC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM
This three-phase washdown motor is designed for heavy-duty applications in harsh environments. With a 2 hp rating and 1,760 RPM, it provides reliable power for demanding tasks. Suitable for use in areas with high humidity or exposure to chemicals, it features a totally enclosed fan-cooled design for maximum protection. Its continuous duty cycle and NEMA Design B rating make it ideal for applications such as food processing, pharmaceutical manufacturing, and chemical processing. The motor's compact size and C-face mounting make it easy to integrate into existing systems, providing a reliable and efficient solution for a variety of washdown applications.
Top product features:
- Three-phase design for efficient operation
- Totally Enclosed Fan Cooled enclosure for protection in harsh environments
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing Equipment
- Pulp and Paper Machinery
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8 A, 143TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 10.50
- Package Height: 7.50
- Package Weight: 48.00
Product info last updated on February 24, 2026 3:15pm UTC
Category: Motors
