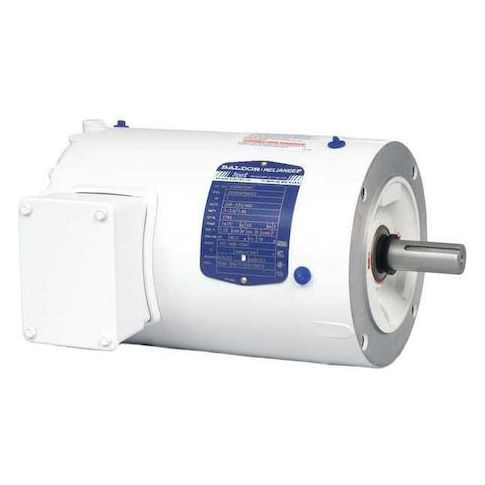

Three-Phase Washdown Motor, 1 hp HP, 143TC Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:VEWDM3546T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053215
Three-Phase Washdown Motor, 1 hp HP, 143TC Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This Three-Phase Washdown Motor is designed for demanding applications in harsh environments, providing reliable performance and efficient operation. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness and hygiene are critical, this motor features a totally enclosed non-ventilated design and a high service factor for continuous duty cycles. Its compact 143TC frame and CW/CCW rotation make it easy to integrate into existing systems. With a nameplate RPM of 1,770 and a usable voltage of 230/460V AC, this motor delivers high-speed performance in a compact package, making it an ideal solution for a wide range of washdown applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed non-ventilated enclosure for protection against washdown environments
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing Equipment
- Chemical Plant Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.7 A, 143TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 24 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 10.50
- Package Height: 6.75
- Package Weight: 41.00
Product info last updated on February 2, 2026 4:08pm UTC
Category: Motors
