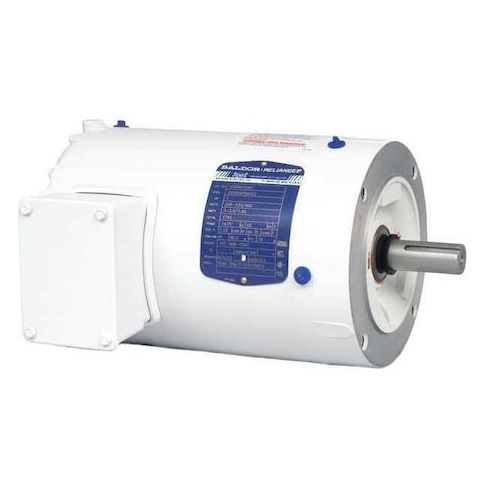

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:VEWDM3546
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053206
Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This three-phase washdown motor is designed for heavy-duty use in food processing, pharmaceutical, and other high-humidity environments. Its durable, totally enclosed non-ventilated design ensures a clean and safe operation, while its 1.15 service factor and continuous duty cycle provide reliable performance. With a 1 hp rating and 1,770 RPM, this motor is suitable for applications such as conveyor systems, pumps, and mixers. Its compact 56C frame and C-face mounting make it easy to integrate into existing systems. Additionally, its 230/460V AC voltage and 208V usability make it a versatile option for various industrial settings.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed non-ventilated enclosure for dust and moisture resistance
- Continuous duty cycle for reliable operation in demanding environments
Top product applications:
- Food Processing Equipment
- Pump and Pumping Systems
- Water Treatment Plant
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.7 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 37.40
