Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 575V Voltage, 1, 774 Nameplate RPM MPN:VEUHM3546T-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053179

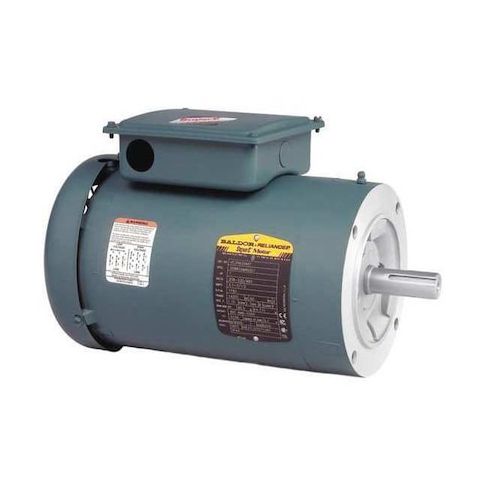

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 575V Voltage, 1, 774 Nameplate RPM
The BALDOR-RELIANCE 1 HP, 143TC Frame, 575V, 3-Phase General Purpose Motor is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. Its totally enclosed fan-cooled design provides reliable operation in harsh environments, while its 85.5% efficiency rating minimizes energy consumption and reduces operating costs. With a service factor of 1.15, this motor can handle demanding workloads and maintain performance over time. Suitable for use in applications such as pumps, fans, and conveyors, this motor is a reliable and cost-effective solution for industries requiring high-performance, low-maintenance motors.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and Water Treatment Systems
- Industrial Conveyors and Material Handling Equipment
- Fans and Blowers in HVAC Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,774, Frame 143TC, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1,701-1,800, CE, CSA EEV, NEMA Premium, RoHS Compliant, UR, WEEE
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.70
- Package Width: 13.80
- Package Height: 13.10
- Package Weight: 39.45
Product info last updated on February 2, 2026 6:06pm UTC
Category: Motors
