Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 208-230/460V Voltage, 1, 770 Nameplate RPM MPN:VEUHM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053118

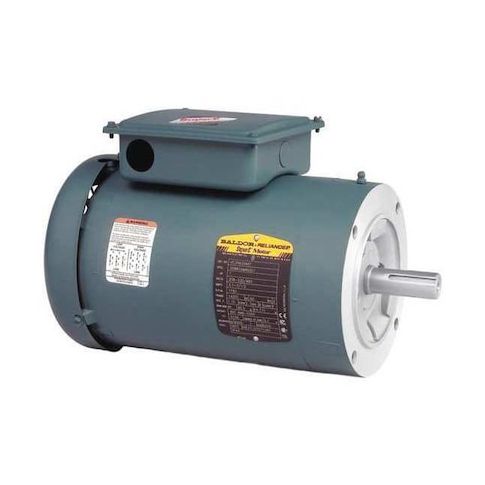

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 208-230/460V Voltage, 1, 770 Nameplate RPM
This 1/2 HP, three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial, commercial, and manufacturing settings. Its 56C frame and totally enclosed fan cooled design provide reliable operation in harsh environments. The motor's 1,770 nameplate RPM and 80% nominal efficiency make it suitable for use in conveyor systems, pumps, and other machinery. With a maximum ambient temperature of 40 degrees C and a service factor of 1.15, this motor can handle demanding applications with ease. Its CE, CSA, and RoHS compliance ensure it meets international safety and environmental standards.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- 60 Hz, Three Phase Operation
Top product applications:
- Pump drives
- Compressor drives
- Industrial machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,770, Frame 56C, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 0.90 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 80 Percent, 1,701-1,800, CE, CSA, RoHS Compliant, UR, WEEE
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.80
- Package Height: 12.80
- Package Weight: 33.55
Product info last updated on February 3, 2026 1:36am UTC
Category: Motors
