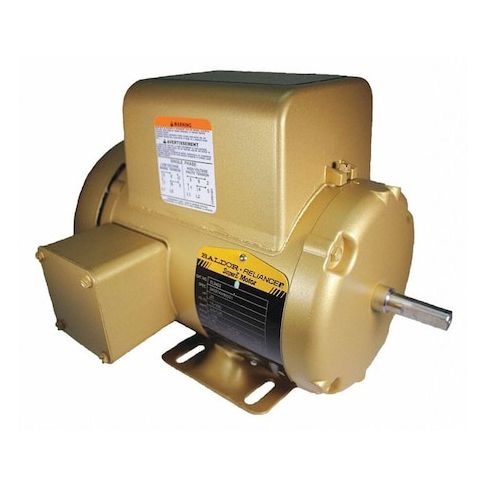

Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame MPN:EL3403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053096
Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame
This 1/4 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for various applications. Suitable for 115/230V AC voltage, it offers a high service factor of 1.35 and a continuous duty cycle. The totally enclosed fan-cooled design ensures optimal performance in harsh environments, with a maximum ambient temperature of 40°C. Ideal for use in industrial settings, this motor is perfect for applications such as pumps, fans, and conveyor systems. Its compact size and lightweight design make it easy to install and maintain, providing a cost-effective and efficient solution for a wide range of industrial needs.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved durability and reduced maintenance
- Capacitor-Start/Run motor design for efficient starting and reduced power consumption
- Single Phase motor operation for compatibility with a wide range of power sources
Top product applications:
- Pump applications
- Fan applications
- Compressor applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 1.3 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design Not Applicable, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 11.50
- Package Height: 10.70
- Package Weight: 24.40
Product info last updated on February 3, 2026 8:19pm UTC
Category: Motors
