Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:VESWDM3546
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8053090

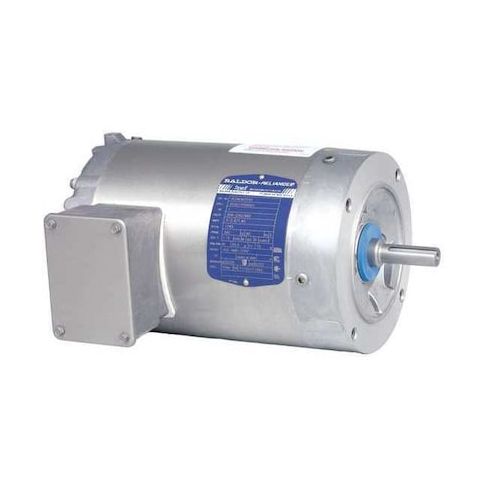

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This 1 hp three-phase washdown motor from BALDOR-RELIANCE is designed for use in harsh environments, with a totally enclosed non-ventilated (TECNV) enclosure that provides protection from dust, dirt, and water. Its continuous duty cycle and NEMA Design B rating make it suitable for applications such as food processing, pharmaceutical manufacturing, and other industries where hygiene is crucial. With a high service factor of 1.15, this motor provides reliable operation and extended lifespan, while its compact 56C frame makes it easy to integrate into existing systems. Its 1,770 RPM rating ensures efficient operation and minimal energy consumption.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed non-ventilated motor enclosure for protection from washdown environments
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing Equipment
- Pulp and Paper Mill Machinery
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.7 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 37.60
Product info last updated on February 4, 2026 3:25pm UTC
Category: Motors
