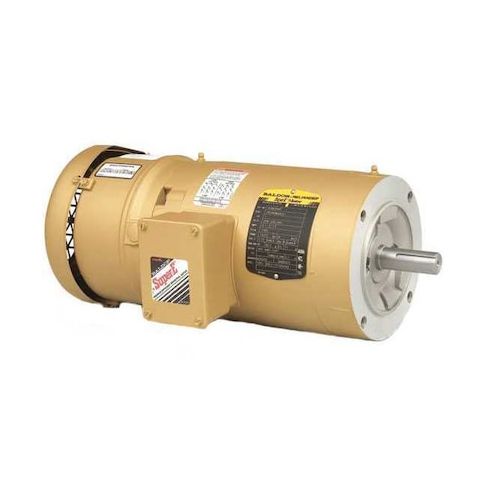

Brake Motor, 1hp, 1770 RPM, 230/460V AC, 56C MPN:VEBM3546
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052880
Brake Motor, 1hp, 1770 RPM, 230/460V AC, 56C
This 1hp brake motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of industrial applications. With a 1770 RPM speed and 230/460V AC voltage, it's perfect for use in manufacturing, material handling, and other processes that require a high level of torque and control. The motor's totally enclosed fan cooled design ensures long-lasting performance in harsh environments, while its continuous duty cycle and 1.15 service factor make it ideal for demanding applications. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems, providing a cost-effective and efficient solution for a range of industries.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Motor Service Factor of 1.15 for increased motor capacity and reliability
- Continuous Duty Cycle for uninterrupted operation and high productivity
Top product applications:
- Material Handling Equipment
- Packaging Machinery
- Conveyor Systems
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, 1.6 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.20
- Package Width: 12.50
- Package Height: 13.40
- Package Weight: 45.25
Product info last updated on February 24, 2026 7:36am UTC
Category: Motors
