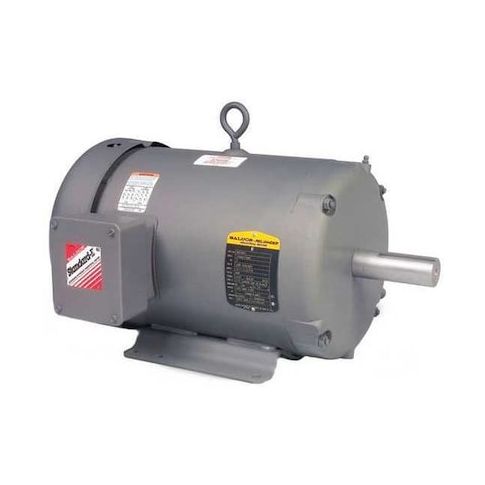

Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 575V AC Voltage, 1, 725 Nameplate RPM MPN:M3542-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052847
Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 575V AC Voltage, 1, 725 Nameplate RPM
This 3/4 HP three-phase AC induction motor is designed for heavy-duty applications in industrial environments. With a nameplate RPM of 1,725 and a robust totally enclosed fan cooled motor enclosure, it operates efficiently and reliably in temperatures up to 40°C. Suitable for use in manufacturing, processing, and material handling facilities, this motor's high service factor and ball bearings ensure optimal performance and extended lifespan. Its compact 56 frame design and CSA certification make it an ideal choice for applications requiring high efficiency and low maintenance. Perfect for conveyor systems, pumps, and other machinery.
Top product features:
- Three-Phase AC Induction Motor design allows for efficient power transmission and motor operation
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operating environment
- Ball Motor Bearings ensure smooth and quiet motor operation
Top product applications:
- Pumps
- Fans
- Compressors
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,725, Frame 56, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, 1,701-1,800, CSA, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 9.50
- Package Height: 6.50
- Package Weight: 27.00
Product info last updated on February 27, 2026 8:07am UTC
Category: Motors
