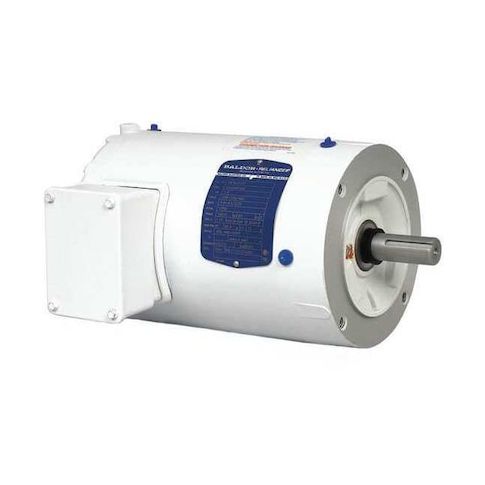

Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:VWDM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052777
Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This 1/2 hp three-phase washdown motor is designed for high-performance cleaning applications in food processing, pharmaceutical, and other industries where cleanliness is paramount. With a durable 56C frame and totally enclosed non-ventilated design, this motor withstands harsh washdown conditions and resists corrosion. Its continuous duty cycle and NEMA Design B rating ensure reliable operation in demanding environments. Suitable for use at 230/460V AC or 208V, this motor is ideal for applications such as conveyor systems, pumps, and mixers, providing efficient and reliable power in a compact package.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed non-ventilated enclosure for protection from washdown environments
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Food Processing
- Pharmaceutical Manufacturing
- Chemical Processing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 0.90 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.50
- Package Height: 10.80
- Package Weight: 29.46
