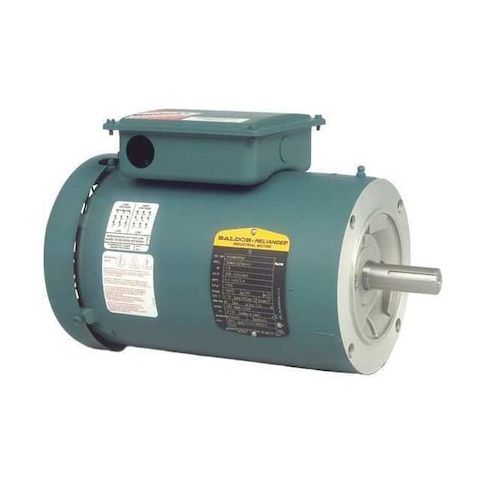

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V Voltage, 1, 735 Nameplate RPM MPN:VUHM3542
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052759
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V Voltage, 1, 735 Nameplate RPM
This 3/4 HP three-phase general purpose motor is designed for a variety of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure ensures reliable operation in harsh environments, while its steel frame provides durability and long lifespan. With a nameplate RPM of 1,735 and a maximum ambient temperature of 40 degrees C, this motor is suitable for applications requiring high efficiency and reliability. Ideal for use in factories, warehouses, and other industrial settings, this motor offers a high service factor of 1.15 and is compliant with CE, CSA, and RoHS standards.
Top product features:
- Three-phase operation for increased power and efficiency
- Totally Enclosed Fan Cooled Motor Enclosure for reduced noise and improved durability
- Ball Motor Bearings for smooth and quiet operation
Top product applications:
- Pumps and water treatment systems
- Fans and ventilation systems
- Conveyor belts and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,735, Frame 56C, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.2 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, 1,701-1,800, CE, CSA, RoHS Compliant, UR, WEEE
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 13.80
- Package Height: 12.90
- Package Weight: 33.02
Product info last updated on February 25, 2026 10:11am UTC
Category: Motors
