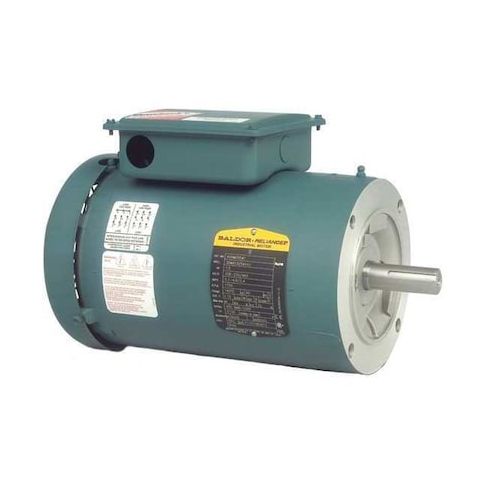

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1, 740 Nameplate RPM MPN:VUHM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052731
Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V Voltage, 1, 740 Nameplate RPM
This 1/2 HP three-phase general purpose motor is designed for heavy-duty applications in industrial settings. With a nameplate RPM of 1,740 and a voltage range of 230/460V, it's suitable for a wide range of uses, including manufacturing, processing, and material handling. The totally enclosed fan-cooled design provides efficient cooling and protection from harsh environments, making it ideal for applications where reliability and durability are essential. Its high service factor of 1.15 and ball bearings ensure long motor life, while its CE, CSA, and RoHS compliance meet international safety and environmental standards.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pumps
- Conveyor Systems
- Fans and Blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,740, Frame 56C, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, Reversible Motor Shaft Rotation, Nominal Efficiency 72 Percent, 1,701-1,800, CE, CSA, RoHS Compliant, UR, WEEE
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.90
- Package Height: 13.00
- Package Weight: 32.45
Product info last updated on February 3, 2026 6:36pm UTC
Category: Motors
