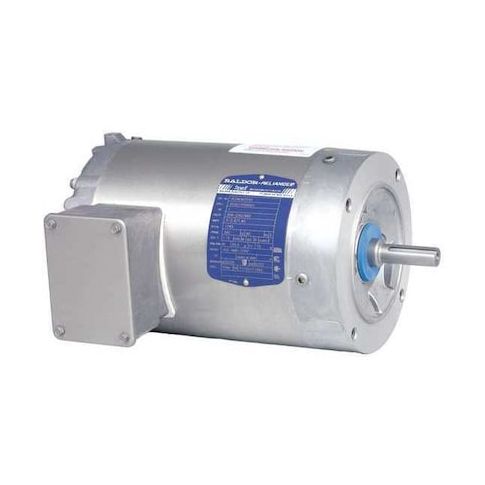

Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:VSWDM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052725
Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This 1/2 hp three-phase washdown motor is designed for demanding applications in food processing, pharmaceutical, and other industries where high sanitation standards are required. Its totally enclosed non-ventilated design and 56C frame provide excellent protection against harsh chemicals and high-pressure washdowns. With a continuous duty cycle and NEMA Design B rating, this motor can operate in extreme environments. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity. Ideal for applications such as pumps, conveyors, and mixers, this motor delivers reliable performance and long-lasting durability.
Top product features:
- Three-Phase Design for efficient power distribution
- Totally Enclosed Non-Ventilated Enclosure for protection from washdown environments
- Continuous Duty Cycle for uninterrupted operation
Top product applications:
- Food Processing Equipment
- Chemical Plant Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 0.90 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Vertical
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.60
- Package Height: 11.10
- Package Weight: 29.83
Product info last updated on January 23, 2026 8:25am UTC
Category: Motors
