Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 230V AC, 460V AC Voltage, 1, 765 Nameplate RPM MPN:EM31112
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052129
Three-Phase AC Induction Motor, 3/4 HP, 56 Frame, 230V AC, 460V AC Voltage, 1, 765 Nameplate RPM

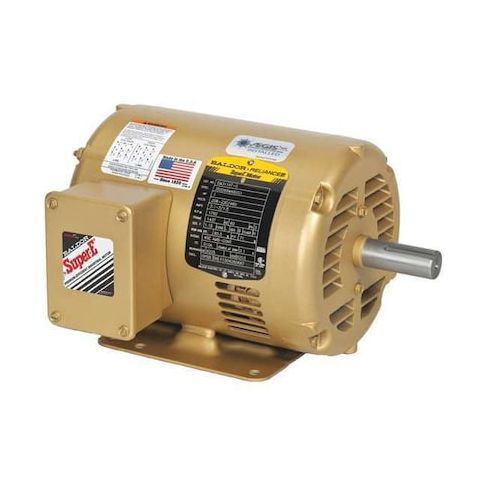

This 3/4 HP, 56 frame, three-phase AC induction motor from BALDOR-RELIANCE is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1,765 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing. The motor's open drip-proof enclosure design and rigid base mounting type make it easy to install and maintain. Its high efficiency of 82.5% and service factor of 1.25 ensure optimal performance and extended motor life, making it an ideal choice for applications where downtime is costly.
Top product features:
- Three-phase AC induction motor design
- Open drip proof motor enclosure design
- Ball motor bearings for reduced maintenance and increased durability
Top product applications:
- Industrial Pumping Systems
- Pulp and Paper Mills
- Textile Manufacturing
AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1,765, Frame 56, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.14/2.28/2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, 1,701-1,800, CURUSEEV, RoHS Compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.50
- Package Height: 10.90
- Package Weight: 29.23
Product info last updated on February 4, 2026 10:10am UTC
Category: Motors
