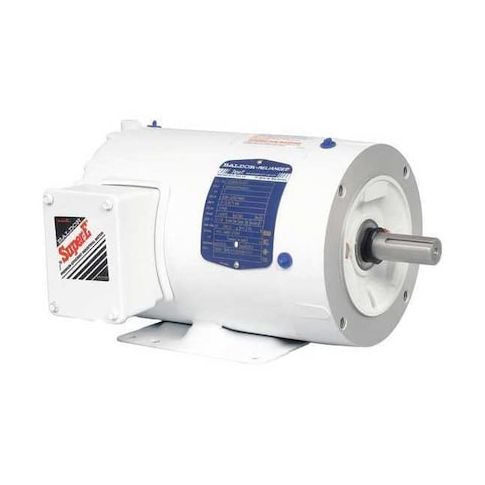

Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:CWDM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8052059
Three-Phase Washdown Motor, 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This 1/2 hp three-phase washdown motor from BALDOR-RELIANCE is designed for heavy-duty applications in harsh environments, making it ideal for use in food processing, chemical plants, and other industries where high-pressure washdowns are required. Its totally enclosed non-ventilated design and 1.25 service factor ensure reliable operation even in extreme conditions. With a continuous duty cycle and NEMA Design B rating, this motor can handle demanding tasks while minimizing maintenance. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems, providing a reliable and efficient solution for a variety of industrial applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed non-ventilated enclosure for protection in harsh environments
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Food Processing Equipment
- Pharmaceutical Manufacturing Equipment
- Chemical Plant Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 0.90 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.70
- Package Height: 10.60
- Package Weight: 30.50
Product info last updated on February 22, 2026 12:24pm UTC
Category: Motors
