Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM MPN:CEWDM3558T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8051961

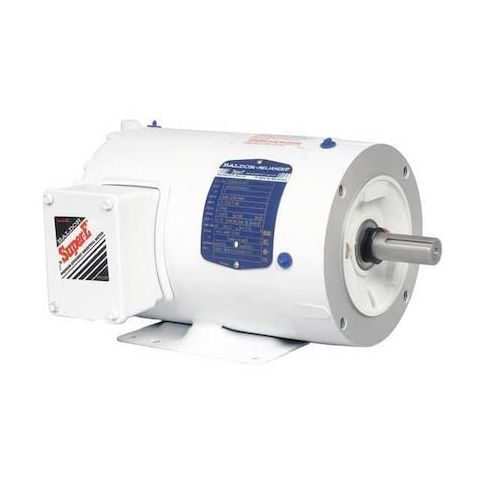

Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 760 RPM Nameplate RPM
This rugged 2 hp three-phase washdown motor is designed for harsh environments, featuring a totally enclosed fan-cooled enclosure and a rigid base for secure mounting. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is paramount, this motor operates at 1,760 RPM and can handle continuous duty cycles. With a service factor of 1.15 and insulation class F, it provides reliable performance and long lifespan. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, making it an ideal choice for applications requiring high sanitation standards and efficient operation.
Top product features:
- Three-phase design for high power efficiency and reliability
- Totally enclosed fan-cooled design for dust and moisture protection
- Continuous duty cycle for high-volume washdown applications
Top product applications:
- Food Processing Equipment
- Pharmaceutical Equipment
- Chemical Processing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8 A, 145TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.20
- Package Width: 13.80
- Package Height: 12.90
- Package Weight: 46.95
Product info last updated on February 19, 2026 2:56am UTC
Category: Motors
