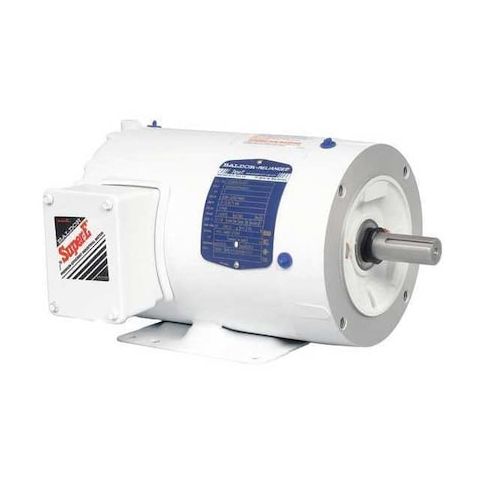

Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM MPN:CEWDM3554T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8051955
Three-Phase Washdown Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1, 770 RPM Nameplate RPM
This Three-Phase Washdown Motor is designed for heavy-duty applications in food processing, pharmaceutical, and other harsh environments. Its 1.5 hp rating and 1,770 RPM make it ideal for high-speed washing and cleaning tasks. The motor's totally enclosed, non-ventilated design protects against dust and water ingress, while its continuous duty cycle ensures reliable operation. Suitable for horizontal mounting, this motor is perfect for applications such as conveyor systems, pumps, and mixers. With a compact 145TC frame and NEMA Design B rating, it's easy to integrate into existing systems, providing a reliable and efficient solution for demanding industrial use.
Top product features:
- Three-Phase Design for efficient power distribution
- Totally Enclosed Non-Ventilated Enclosure for protection from washdown environments
- CW/CCW Motor Shaft Rotation for flexibility in installation and integration
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.3 A, 145TC Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.25
- Package Width: 10.75
- Package Height: 7.25
- Package Weight: 49.00
Product info last updated on February 4, 2026 3:56pm UTC
Category: Motors
