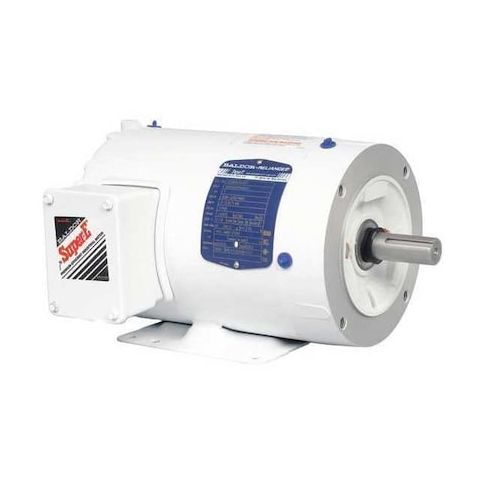

Three-Phase Washdown Motor, 3 hp HP, 145TC Frame, 230/460V AC Voltage, 3, 450 RPM Nameplate RPM MPN:CEWDM3559T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8051946
Three-Phase Washdown Motor, 3 hp HP, 145TC Frame, 230/460V AC Voltage, 3, 450 RPM Nameplate RPM
The BALDOR-RELIANCE Three-Phase Washdown Motor is designed for heavy-duty applications in harsh environments, including food processing, pharmaceutical, and chemical manufacturing facilities. Its totally enclosed fan-cooled design and rugged construction ensure reliable operation in wet and corrosive conditions. The motor's continuous duty cycle and high service factor make it ideal for 24/7 operation. With its ability to operate at 230/460V AC and 208V, this motor is versatile and adaptable to various facility needs. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, providing a reliable and efficient solution for demanding washdown applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Fan Cooled enclosure for improved durability and reduced maintenance
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Food Processing Machinery
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.6 A, 145TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 13.70
- Package Height: 12.60
- Package Weight: 53.00
Product info last updated on February 25, 2026 5:04pm UTC
Category: Motors
