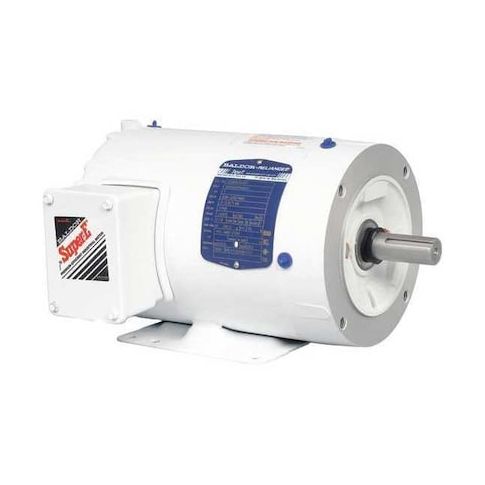

Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 3, 490 RPM Nameplate RPM MPN:CEWDM3555T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8051937
Three-Phase Washdown Motor, 2 hp HP, 145TC Frame, 230/460V AC Voltage, 3, 490 RPM Nameplate RPM
This 2 hp Three-Phase Washdown Motor is designed for harsh environments, featuring a totally enclosed fan-cooled enclosure and a rigid base for secure mounting. Suitable for use at 230/460V AC or 208V, it operates at 3,490 RPM and has a continuous duty cycle. The motor's NEMA Design B classification ensures reliable performance, while its Class F insulation and 1.15 service factor provide added protection. Ideal for use in food processing, pharmaceutical, and other washdown applications, this motor offers a durable and efficient solution for demanding environments.
Top product features:
- Three-phase design for efficient operation in demanding environments
- Totally enclosed fan-cooled motor for improved cooling and reduced maintenance
- Continuous duty cycle for uninterrupted operation in high-demand applications
Top product applications:
- Food Processing Equipment
- Wastewater Treatment Plants
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.5 A, 145TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 13.90
- Package Height: 12.60
- Package Weight: 46.60
Product info last updated on February 7, 2026 2:27am UTC
Category: Motors
