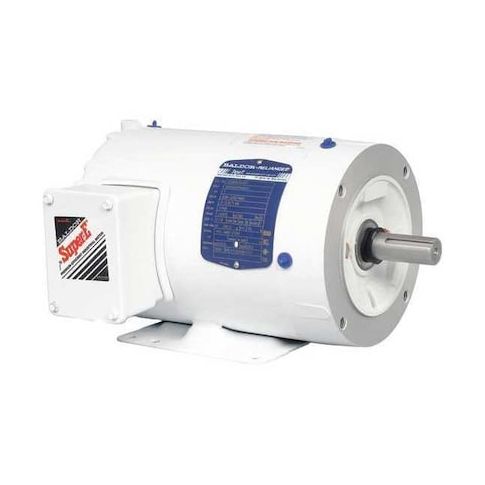

Three-Phase Washdown Motor, 1 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 3, 500 RPM Nameplate RPM MPN:CEWDM3550
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8051900
Three-Phase Washdown Motor, 1 1/2 hp HP, 56C Frame, 230/460V AC Voltage, 3, 500 RPM Nameplate RPM
This 1 1/2 hp three-phase washdown motor is designed for use in harsh environments where high-pressure water cleaning is required. Its totally enclosed non-ventilated design and NEMA Design B rating ensure reliable operation in wet and dirty conditions. The motor's continuous duty cycle and 1.15 service factor make it suitable for demanding applications such as food processing, pharmaceutical manufacturing, and chemical plants. With a 3,500 RPM nameplate speed and 2.0 A full load current, this motor provides efficient power delivery and long motor life. Its compact 56C frame and C-face mounting make it easy to integrate into existing systems.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Non-Ventilated (TENV) enclosure for protection against washdown and harsh environments
- Continuous duty cycle operation for reliable performance in demanding applications
Top product applications:
- Food Processing Equipment
- Pulp and Paper Mill Equipment
- Chemical Plant Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.0 A, 56C Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.60
- Package Height: 10.90
- Package Weight: 45.30
Product info last updated on February 27, 2026 7:42pm UTC
Category: Motors
