Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:EFM3615T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8043156

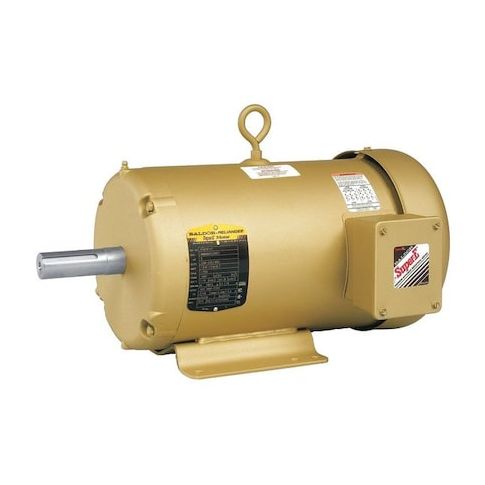

Three-Phase General Purpose Motor, 5 HP, 184T Frame, 208-230/460V AC Voltage, 1750 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Baldor-Reliance is designed for a wide range of industrial applications, including manufacturing, material handling, and power generation. With a totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's rigid base mounting and ball bearings ensure smooth operation and long lifespan. Suitable for continuous duty, it can handle demanding tasks with ease. Its high efficiency and robust design make it an ideal choice for applications requiring high torque and reliability, such as pumps, fans, and conveyor systems. It is also CSA certified for added safety and compliance.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump applications for water treatment and chemical processing
- Fans and blowers for industrial ventilation systems
- Conveyor systems for manufacturing and material handling
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1750 rpm, Frame 184T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.4/6.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.60
- Package Width: 16.50
- Package Height: 16.00
- Package Weight: 93.00
Product info last updated on February 5, 2026 4:41am UTC
Category: Motors
