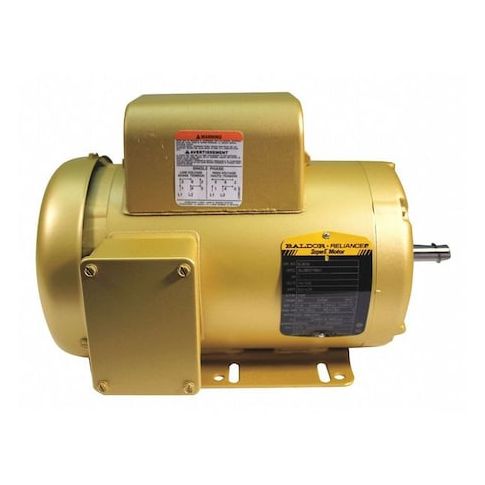

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame MPN:EL3510
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8027415
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame
Power your applications with the reliable BALDOR-RELIANCE 1 hp Capacitor-Start/Run General Purpose Motor. Suitable for a wide range of industrial and commercial uses, this motor is designed for continuous duty cycles and can operate at 115/230V AC voltage. Its 56H frame and totally enclosed fan cooled design ensure efficient operation in various temperatures. With a high service factor of 1.15 and a NEMA Design L rating, this motor offers reliable performance and long lifespan. Ideal for use in fans, pumps, and other machinery, it's a versatile solution for applications requiring a single-phase motor.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Motor Design Capacitor-Start/Run for efficient starting and reduced energy consumption
- NEMA Design L for high starting torque and reliable operation in a variety of applications
Top product applications:
- Air conditioning and heating systems
- Pumps and pumping systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.8 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 48.00
Product info last updated on March 22, 2026 12:31am UTC
Category: Motors
