Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 143TC Frame MPN:VL3510T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8014456

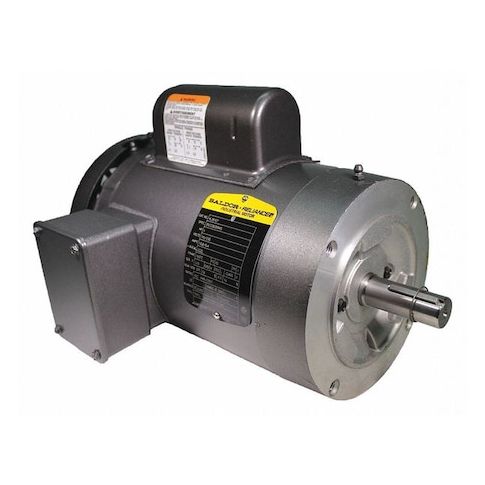

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 143TC Frame
This 1 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient choice for various applications. Designed for single-phase use, it features a 143TC frame and a nameplate RPM of 1,800. Suitable for use at 115/230V AC voltage, it provides 6.3 amps of full-load current. With a motor service factor of 1.15 and a maximum ambient temperature of 40 degrees C, it operates in a wide range of conditions. Ideal for use in continuous duty cycles, this motor is perfect for applications in industrial settings, commercial facilities, and residential areas where a reliable and energy-efficient motor is required.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure
- Continuous Duty Cycle Capability
- Single Phase, Capacitor-Start/Run Motor Design
Top product applications:
- Pumps and blowers in commercial and industrial settings
- Fans and blowers in HVAC systems
- Conveyors and other equipment in manufacturing facilities
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.3 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.70
- Package Height: 11.00
- Package Weight: 39.75
Product info last updated on February 2, 2026 8:10pm UTC
Category: Motors
