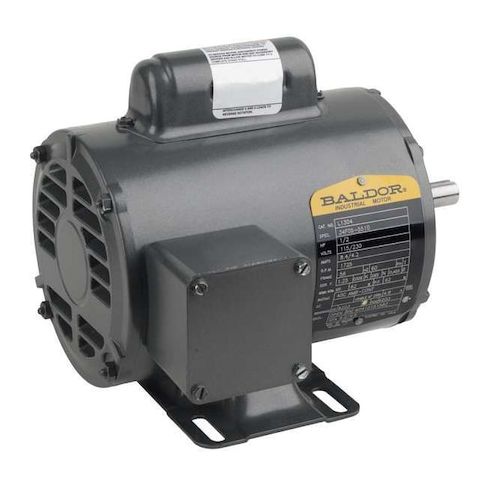

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143T Frame MPN:L1313T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8003484
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143T Frame
This 1.5 hp general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its capacitor-start/run design provides efficient operation and long motor life. Suitable for use in environments up to 40°C, this motor is ideal for applications where high reliability and durability are required. Its NEMA Design L rating ensures high efficiency and low noise levels. The motor's open drip-proof enclosure protects against dust and moisture, making it suitable for use in a variety of industrial settings. Its compact size and rigid base make it easy to install and integrate into existing systems.
Top product features:
- Capacitor-start/run design for efficient starting and running
- Single-phase motor design for use in a variety of applications
- Open drip-proof enclosure design for protection in harsh environments
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.9 A, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 10.00
- Package Height: 9.25
- Package Weight: 36.00
Product info last updated on February 10, 2026 6:05pm UTC
Category: Motors
