Three-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1160 rpm Nameplate RPM MPN:EM3704T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7989861

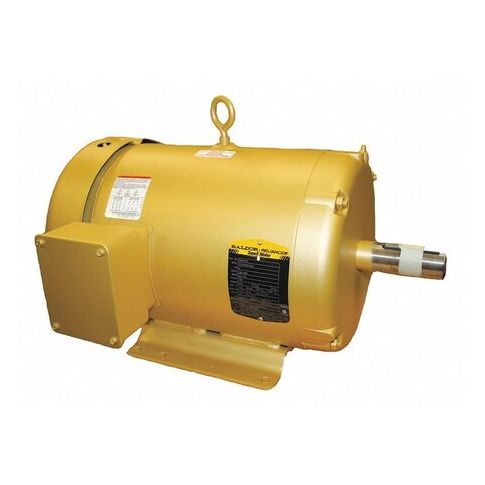

Three-Phase General Purpose Motor, 3 HP, 213T Frame, 230/460V AC Voltage, 1160 rpm Nameplate RPM
This 3 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial processing, manufacturing, and commercial facilities. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its 89.5% nominal efficiency reduces energy costs and minimizes environmental impact. The motor's rigid base mounting and CW/CCW shaft rotation make it easy to integrate into existing systems. Suitable for continuous duty, this motor is ideal for applications such as pumps, fans, and conveyor systems, and meets CSA and CSA EEV standards for safety and performance.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed fan cooled motor enclosure design provides a reliable and low-maintenance cooling system.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Pump and fan drives in industrial settings
- Conveyor belt drives in manufacturing facilities
- Centrifugal compressor drives in chemical processing plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1160 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.2/4.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 132.00
