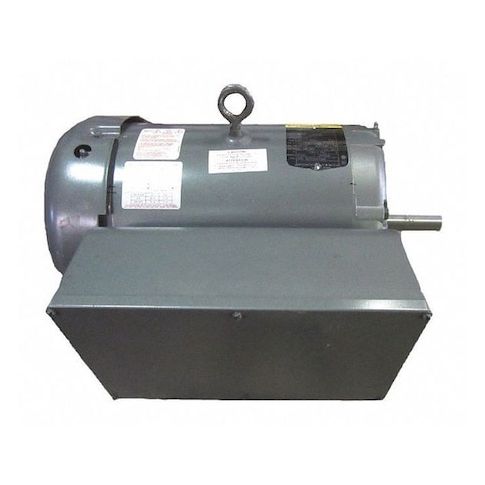

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 213T Frame MPN:L3708T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7989283
Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 213T Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 230V AC environments, this motor offers a high power output of 5 hp, with a nameplate RPM of 1,800. Its totally enclosed fan cooled design ensures optimal performance in harsh conditions, while its continuous duty cycle and 1.15 service factor make it ideal for demanding applications. Perfect for use in industries such as manufacturing, pumping, and HVAC, this motor is also suitable for use in commercial and residential settings where reliable and efficient power is essential.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor longevity and reduced maintenance
- Capacitor-Start/Run motor design for efficient starting and reduced energy consumption
- Continuous duty cycle capability for reliable operation in demanding applications
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 20.5 A, 213T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.60
- Package Width: 16.20
- Package Height: 15.90
- Package Weight: 116.00
Product info last updated on March 6, 2026 5:58pm UTC
Category: Motors
