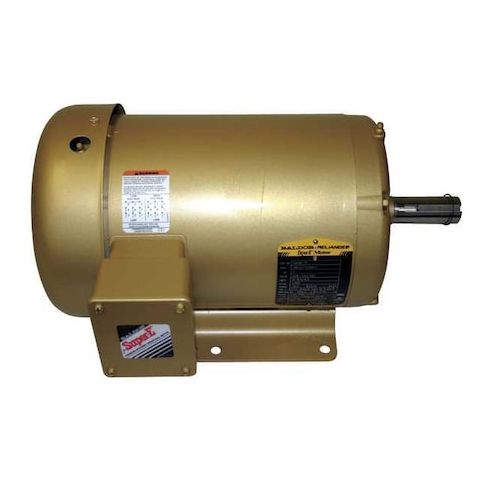

Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 16 in Overall Length MPN:CEM3660T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7972806
Three-Phase General Purpose Motor, 3 HP, 182TC Frame, 208-230/460V AC Voltage, 16 in Overall Length
This 3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its cast iron frame ensures durability and long lifespan. With a high efficiency rating of 86.5%, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty applications, it's ideal for use in factories, warehouses, and other industrial settings where high torque and reliability are required. Its compact design makes it easy to install and integrate into existing systems.
Top product features:
- Three-phase design allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled motor enclosure design provides a durable and reliable cooling system.
- Ball motor bearings ensure smooth and quiet operation.
Top product applications:
- Industrial Automation Systems
- Manufacturing Process Control
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3460 rpm, Frame 182TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.6/3.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 12.00
- Package Height: 11.50
- Package Weight: 90.00
Product info last updated on February 27, 2026 6:19pm UTC
Category: Motors
