Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame MPN:L1405T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7968037

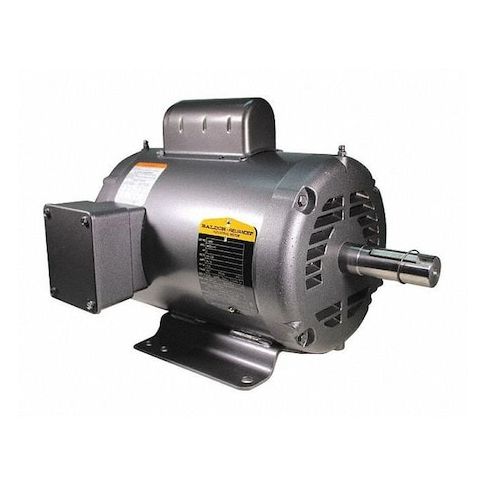

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182T Frame
This 2 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1,800 and a single phase design, it is suitable for various settings where a reliable and efficient motor is required. The motor's usability at 208V and 115/230V AC voltage makes it adaptable to different power sources. Its open drip proof design and CW/CCW shaft rotation provide flexibility in installation. This motor is ideal for applications such as pumping, conveying, and material handling, where continuous operation is necessary.
Top product features:
- Capacitor-Start/Run design allows for efficient starting and running of the motor
- Single Phase motor design provides a compact and cost-effective solution
- Open Drip Proof motor enclosure design protects against dust and water ingress
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.0 A, 182T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.75
- Package Height: 11.00
- Package Weight: 65.75
Product info last updated on February 2, 2026 12:13pm UTC
Category: Motors
