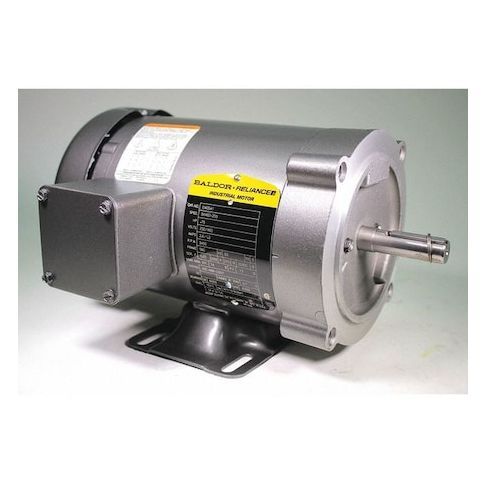

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM MPN:CM3541
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7961782
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3, 450 Nameplate RPM
This 3/4 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for heavy-duty applications requiring reliable and efficient performance. With a nameplate RPM of 3,450 and a fully enclosed fan-cooled design, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and factories. Its steel frame and ball bearings ensure long-lasting durability, while its 74% nominal efficiency reduces energy costs. Suitable for continuous duty, this motor is perfect for applications like conveyor systems, pumps, and compressors, and is also CSA and UL certified for added safety and compliance.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pump applications where a high starting torque is required
- General lighting and HVAC systems
- Conveyor systems and other industrial machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3,450, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.6/1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 3001-3600, CSA, UR, Includes Conduit Box
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 10.90
- Package Height: 9.60
- Package Weight: 22.05
Product info last updated on January 26, 2026 10:18pm UTC
Category: Motors
