Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 184 Frame MPN:L3605
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7957546
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 184 Frame

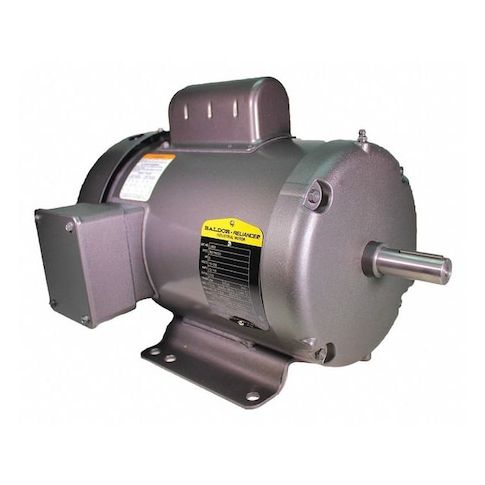

The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various industries, this motor is perfect for powering pumps, fans, and other equipment that requires a consistent and steady flow of power. With its 2 horsepower rating and 1,800 RPM nameplate speed, this motor provides the necessary power and speed to get the job done. Its compact 184 frame design and totally enclosed fan-cooled construction make it ideal for use in tight spaces and harsh environments, reducing maintenance and downtime.
Top product features:
- Totally Enclosed Fan Cooled Design for Improved Cooling and Durability
- Capacitor-Start/Run Motor Design for Efficient Starting and Reduced Energy Consumption
- Continuous Duty Cycle Capability for Reliable Operation in High-Load Applications
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5 A, 184 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.70
- Package Height: 12.60
- Package Weight: 66.60
Product info last updated on February 23, 2026 9:34pm UTC
Category: Motors
