Three-Phase General Purpose Motor, 1 1/2 HP, 143T Frame, 208-230/460V AC Voltage MPN:EM3550T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7945655

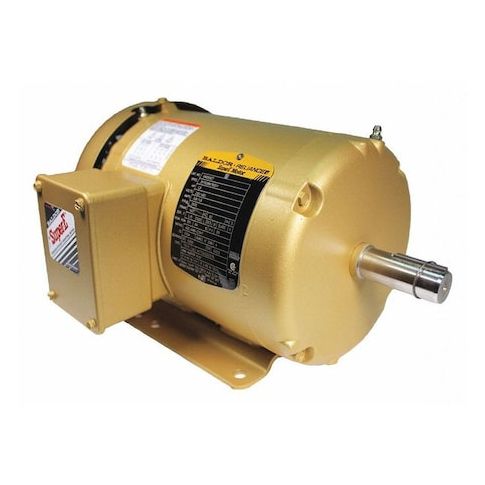

Three-Phase General Purpose Motor, 1 1/2 HP, 143T Frame, 208-230/460V AC Voltage
This 1.5 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of industrial applications. With its totally enclosed fan cooled motor enclosure, it provides reliable operation in demanding environments. Suitable for continuous duty, this motor is ideal for use in factories, warehouses, and other high-traffic areas. Its high efficiency rating of 84% reduces energy costs and minimizes environmental impact. The motor's rigid base mounting type and steel frame ensure durability and long lifespan. Applications include conveyor systems, pumps, and compressors, among others. Its compact size and easy installation make it a convenient choice for many industries.
Top product features:
- Three-Phase General Purpose Motor design allows for efficient operation in multiple voltage configurations.
- Totally Enclosed Fan Cooled Motor Enclosure Design provides protection against environmental factors and maintains motor temperature.
- Ball Motor Bearings enable smooth and durable motor operation.
Top product applications:
- Industrial Automation Systems
- Manufacturing Facilities
- Pumping Stations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3500 rpm, Frame 143T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.8/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 11.40
- Package Height: 7.90
- Package Weight: 36.75
Product info last updated on February 16, 2026 8:41am UTC
Category: Motors
