Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame MPN:L3515M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7940947

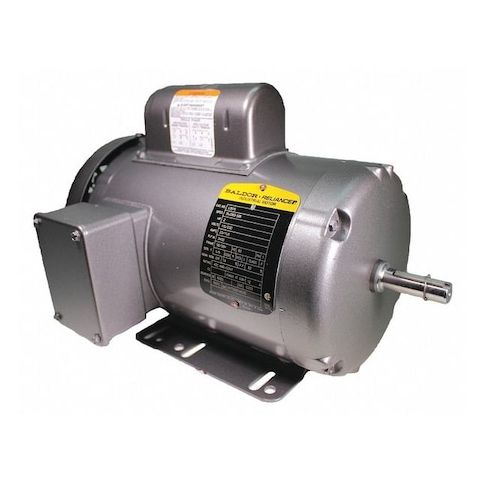

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in single-phase systems, this motor is ideal for industrial and commercial settings where continuous operation is required. With a 2 hp rating and 3,600 RPM, it delivers powerful performance while minimizing energy consumption. The motor's totally enclosed fan-cooled design ensures quiet and efficient operation, making it perfect for applications such as pumps, fans, and conveyor systems. Its compact 56H frame and durable construction make it easy to integrate into existing systems, providing a reliable and cost-effective solution for various industrial needs.
Top product features:
- Capacitor-start/run design for improved starting torque and efficiency
- Totally enclosed fan-cooled motor for reduced noise and increased durability
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pump applications
- Conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.50
- Package Height: 10.60
- Package Weight: 51.80
