Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143TC Frame MPN:VL3513T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7940746

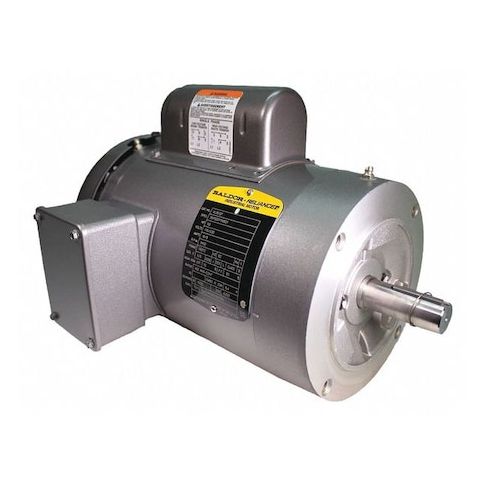

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143TC Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor delivers 1.5 horsepower with a nameplate RPM of 3,600. Its totally enclosed fan-cooled design provides optimal performance in hot temperatures, up to 40°C. With a continuous duty cycle and motor service factor of 1.15, this motor is ideal for use in industrial settings where reliability and efficiency are paramount. Its compact size and easy installation make it perfect for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for use in a variety of applications
- Continuous Duty Cycle for reliable operation in demanding environments
Top product applications:
- Industrial Automation
- Pumps and Compressors
- Conveyor Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 12.20
- Package Height: 9.90
- Package Weight: 38.20
Product info last updated on February 7, 2026 5:28am UTC
Category: Motors
