Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:CNM3454/35
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7927954

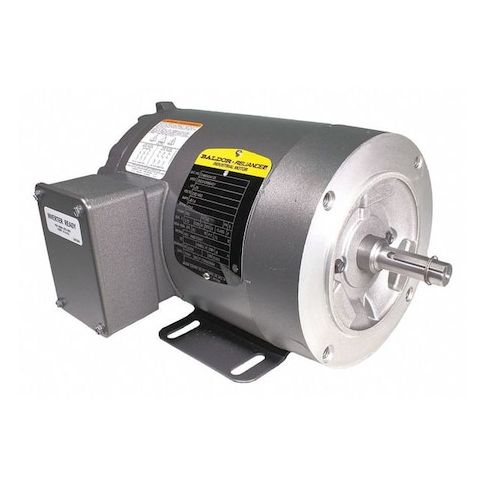

Three-Phase General Purpose Motor, 1/4 HP, 56C Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM
This 1/4 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial equipment, pumps, and compressors. Its totally enclosed non-ventilated motor enclosure ensures safe and efficient operation in harsh environments. With a nameplate RPM of 1750 rpm and a voltage range of 230/460V AC, this motor is ideal for continuous duty applications. Its high efficiency and robust construction make it a reliable choice for demanding industrial use. Suitable for use in a variety of settings, including factories, warehouses, and manufacturing facilities, this motor provides reliable performance and long-lasting operation.
Top product features:
- Totally Enclosed Non-Ventilated Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pump and fan applications
- Industrial machinery and equipment
- Conveyors and material handling systems
General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/4 HP, Nameplate RPM 1750 rpm, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.8/0.4 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 80 Percent, Continuous Duty, 1701-1800, CSA, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 10.50
- Package Height: 7.00
- Package Weight: 30.00
Product info last updated on January 17, 2026 5:36am UTC
Category: Motors
