Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 16 in Overall Length MPN:CEM3663T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7923614

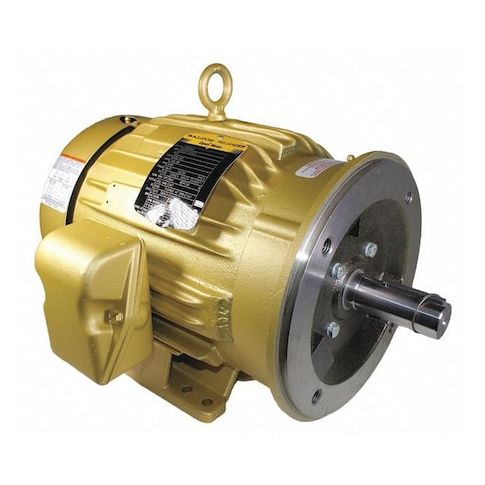

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 16 in Overall Length
This 5 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for demanding applications that require reliable performance. With a totally enclosed fan cooled motor enclosure, it operates efficiently and quietly, while its ball motor bearings ensure smooth operation and reduced maintenance. Suitable for continuous duty, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and processing plants. Its high efficiency and robust design make it a reliable choice for applications that require a high level of performance and durability, including conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Totally enclosed fan cooled motor design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3475 rpm, Frame 184TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 11.6/5.8 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.20
- Package Width: 15.80
- Package Height: 15.00
- Package Weight: 91.00
Product info last updated on February 2, 2026 12:17pm UTC
Category: Motors
