Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 48 Frame MPN:L3407
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7922406

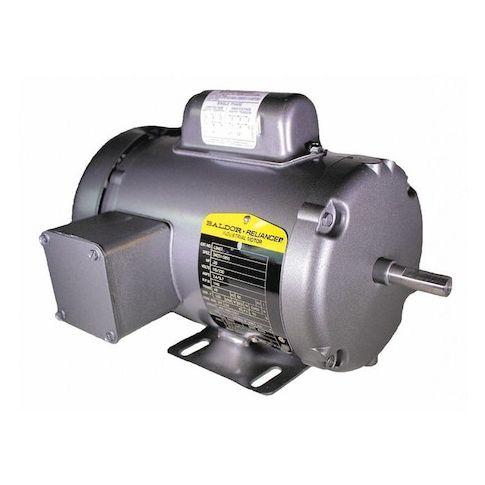

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 48 Frame
The BALDOR-RELIANCE 1/3 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor is perfect for powering small machinery, tools, and equipment in various industries. Its totally enclosed fan-cooled design ensures optimal performance in high-temperature conditions, making it ideal for use in manufacturing, construction, and other demanding settings. With a continuous duty cycle and high service factor, this motor provides long-lasting reliability and minimizes downtime, making it a valuable addition to any operation.
Top product features:
- Capacitor-start/run design allows for efficient starting and running of the motor
- Totally enclosed fan-cooled design provides protection from environmental contaminants and improves cooling efficiency
- Continuous duty cycle enables the motor to operate for extended periods without overheating
Top product applications:
- Pump motor for small commercial or residential applications
- Fan motor for HVAC or ventilation systems
- Conveyor belt motor for light industrial applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,200 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.7 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.90
- Package Width: 11.00
- Package Height: 9.40
- Package Weight: 27.50
Product info last updated on February 2, 2026 2:57am UTC
Category: Motors
