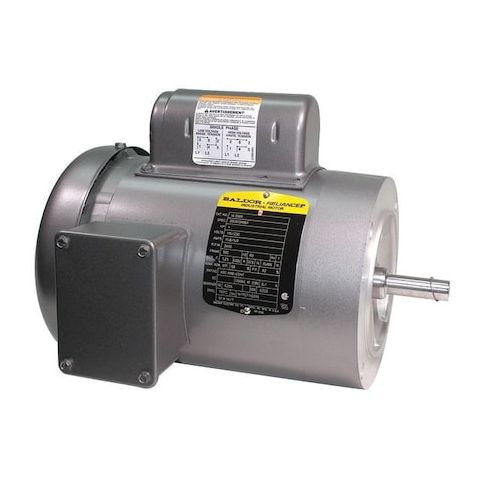

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56C Frame MPN:VL3509
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7884055
Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56C Frame
This general purpose motor is a reliable and efficient solution for a wide range of applications. With a 1 hp rating and 3,600 RPM, it's suitable for use in industrial settings where continuous operation is required. The capacitor-start/run design provides smooth and quiet operation, while the totally enclosed fan-cooled enclosure protects the motor from dust and moisture. This motor is ideal for use in conveyor systems, pumps, and other machinery where high torque and reliability are essential. Its compact size and lightweight design make it easy to integrate into existing systems, providing a cost-effective and long-lasting solution.
Top product features:
- Totally Enclosed Fan Cooled motor design provides improved protection from environmental factors.
- Capacitor-Start/Run motor design allows for efficient starting and running of the motor.
- Usable at 208V provides flexibility in voltage compatibility.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.9/6.1/11.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.50
- Package Height: 13.00
- Package Weight: 35.75
Product info last updated on February 12, 2026 9:25am UTC
Category: Motors
