Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 215T Frame MPN:L1510T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7878062

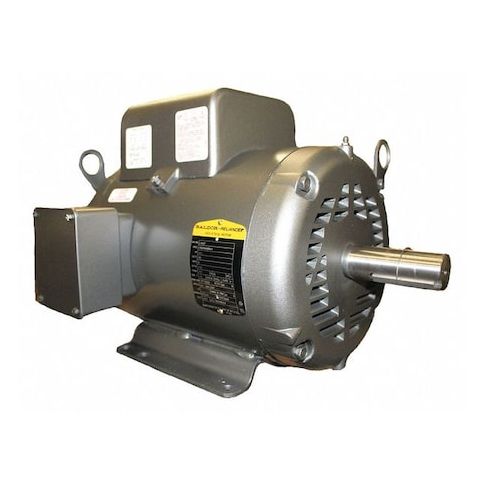

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 230V AC Voltage, 215T Frame
This 7 1/2 hp Capacitor-Start/Run motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in 230V AC environments, it offers a single-phase design and a nameplate RPM of 1,800. With a motor service factor of 1.15, it can handle continuous duty cycles in temperatures up to 40°C. The open drip-proof enclosure provides protection from the elements, making it ideal for use in industrial settings. Its compact design and rugged construction make it a great choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start/run design for improved starting torque and efficiency
- Single-phase motor operation for common household and commercial applications
- Open drip-proof enclosure design for protection against dust and water splashing
Top product applications:
- Industrial Pumps
- Water Treatment Plants
- Oil and Gas Extraction Equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 31.0 A, 215T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 132.00
Product info last updated on February 17, 2026 8:34am UTC
Category: Motors
