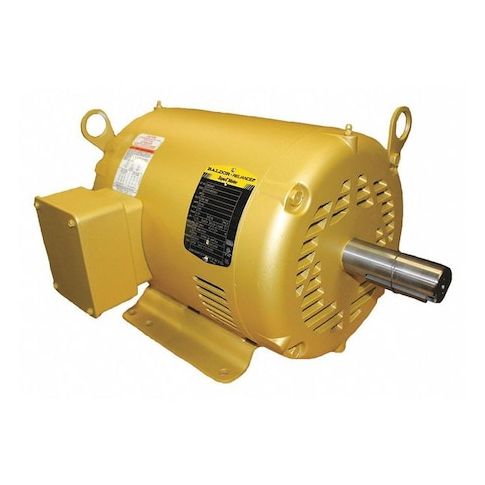

Three-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1165 rpm Nameplate RPM MPN:EM3305T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7866311
Three-Phase General Purpose Motor, 3 HP, 213T Frame, 208-230/460V AC Voltage, 1165 rpm Nameplate RPM
This 3 HP, 213T frame, three-phase general purpose motor is designed for a wide range of applications, including industrial processes, material handling, and HVAC systems. Its open drip-proof enclosure and rigid base motor mounting type ensure reliable operation in harsh environments. With a nameplate RPM of 1165 rpm and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks with ease. Its high efficiency and continuous duty rating make it an ideal choice for applications requiring long-term reliability and minimal energy consumption, such as manufacturing, pumping, and conveyor systems.
Top product features:
- Three-phase operation for increased power and efficiency
- Open drip-proof motor enclosure design for protection from moisture and debris
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial Automation
- Manufacturing Process Control
- Pumping Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1165 rpm, Frame 213T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 9/4.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.20
- Package Width: 16.20
- Package Height: 14.20
- Package Weight: 118.00
