Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/208-230V AC Voltage MPN:EL3507
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7863064

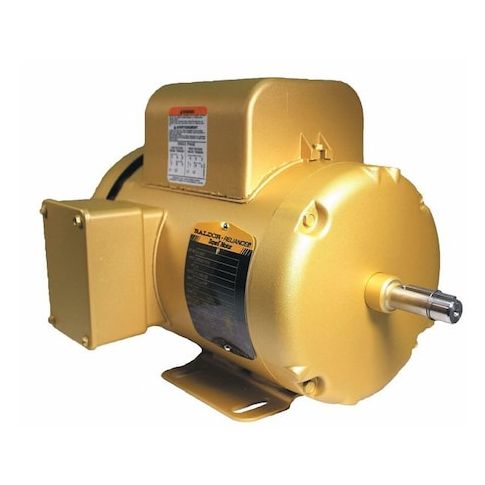

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/208-230V AC Voltage
This 3/4 horsepower, 1,800 RPM capacitor-start/run motor from Baldor-Reliance is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, this motor provides continuous duty operation and can withstand temperatures up to 40 degrees C. Its totally enclosed fan-cooled design and Class F insulation ensure long motor life and minimize downtime. Ideal for use in commercial and industrial settings, this motor is perfect for applications such as conveyor systems, pumps, and fans, where reliability and efficiency are paramount. Its compact design also makes it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for increased motor reliability and reduced maintenance
- Motor Thermal Protection None, implying a high-temperature tolerance for continuous operation
- Capacitor-Start/Run motor design for efficient starting and running performance
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.90
- Package Height: 10.60
- Package Weight: 41.00
Product info last updated on February 14, 2026 4:56pm UTC
Category: Motors
