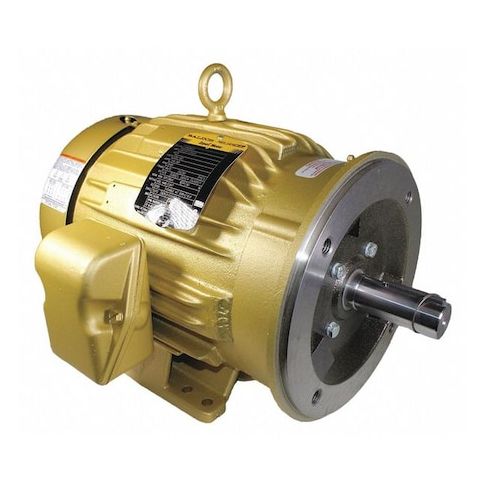

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 16 in Overall Length MPN:CEM3665T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7861497
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 208-230/460V AC Voltage, 16 in Overall Length
Power your industrial operations with the BALDOR-RELIANCE 5 HP Three-Phase General Purpose Motor. Designed for continuous duty, this motor features a totally enclosed fan cooled (TEFC) enclosure and cast iron frame for durability and reliability. With a nameplate RPM of 1750 and nominal efficiency of 89.5%, this motor provides consistent performance and energy savings. Suitable for a wide range of applications, including manufacturing, material handling, and pumping systems, this motor is CSA certified and meets the highest standards for quality and safety. Its compact design and easy installation make it an ideal choice for any industrial setting.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty
Top product applications:
- Industrial Automation
- Manufacturing Facilities
- Pumping Stations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1750 rpm, Frame 184TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.2/6 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 16.00
- Package Height: 15.00
- Package Weight: 114.00
Product info last updated on March 11, 2026 10:48am UTC
Category: Motors
