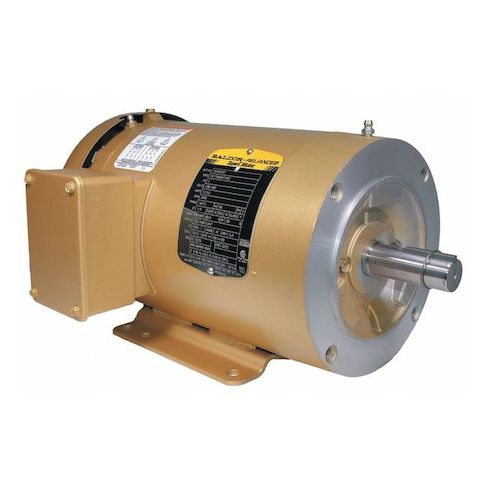

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:CEM3555T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7840113
Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM
This 2 HP, 145TC frame, three-phase general purpose motor from BALDOR-RELIANCE is designed for continuous duty applications. Ideal for use in manufacturing, processing, and material handling industries, this motor offers high efficiency and reliability. With a nameplate RPM of 3490 and a voltage range of 230/460V AC, it can handle demanding tasks with ease. The motor's totally enclosed fan cooled design ensures optimal performance in harsh environments, while its steel frame and ball bearings provide durability and long lifespan. Suitable for a wide range of applications, including conveyor systems, pumps, and fans, this motor is a reliable choice for any industrial setting.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Pump applications requiring high horsepower and reliability
- Fans and blowers in industrial settings where a high-speed motor is necessary
- Machine tool applications where a high-torque and high-speed motor is required
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3490 rpm, Frame 145TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5/2.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 13.50
- Package Height: 12.60
- Package Weight: 46.07
Product info last updated on February 2, 2026 8:37pm UTC
Category: Motors
