Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame MPN:L1408T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7837672

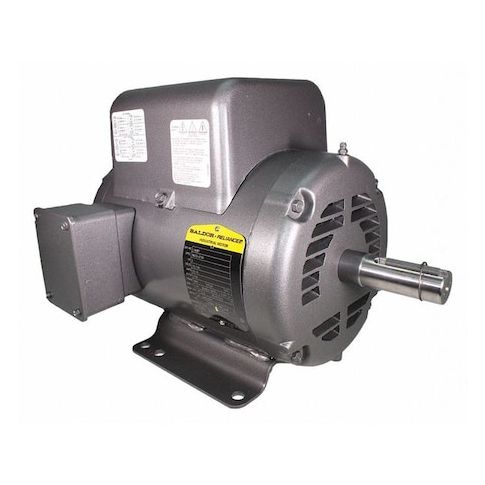

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, this 3 hp motor operates at 1,800 RPM and is designed for continuous duty cycles. Its open drip-proof enclosure and rigid base mounting make it ideal for industrial settings, while its CW/CCW rotation accommodates diverse equipment requirements. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor provides long-lasting performance and can withstand demanding conditions. Perfect for use in manufacturing, processing, and assembly lines.
Top product features:
- Capacitor-start/run motor design provides efficient starting and operation
- Single-phase motor operation allows for use in a wide range of applications
- Open drip-proof motor enclosure design protects internal components from liquids and dust
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 16.0 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 12.50
- Package Height: 13.30
- Package Weight: 75.00
Product info last updated on February 20, 2026 2:49pm UTC
Category: Motors
