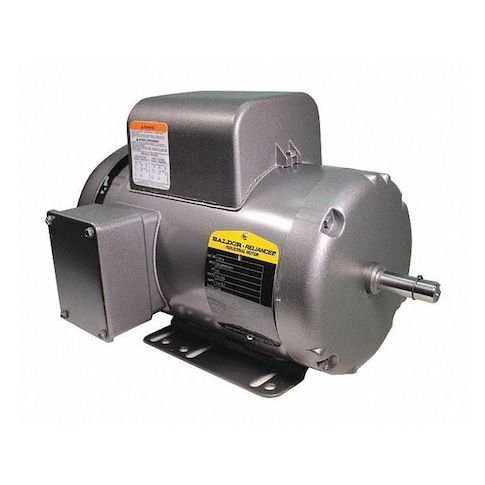

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56H Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in industrial settings, this motor can be utilized in environments with ambient temperatures up to 40 degrees C and is designed for continuous duty cycles. Its 1.5 horsepower rating and 1,800 RPM make it ideal for applications requiring moderate power and speed. The motor's totally enclosed fan-cooled design ensures long-lasting performance and reduced maintenance. With a 1.15 service factor and insulation class F, this motor provides added protection and reliability in a variety of industrial settings, including manufacturing and assembly lines.
Top product features:
- Totally Enclosed Fan Cooled design
- Motor Thermal Protection None
- Nameplate RPM 1,800 RPM
Top product applications:
- Pump applications such as irrigation pumps, sump pumps, and water circulation pumps
- Fans and blowers such as industrial ventilation systems and air conditioning units
- Conveyor systems and other material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.1 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.50
- Package Height: 10.30
- Package Weight: 50.10
