Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:EFM3211T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7826567

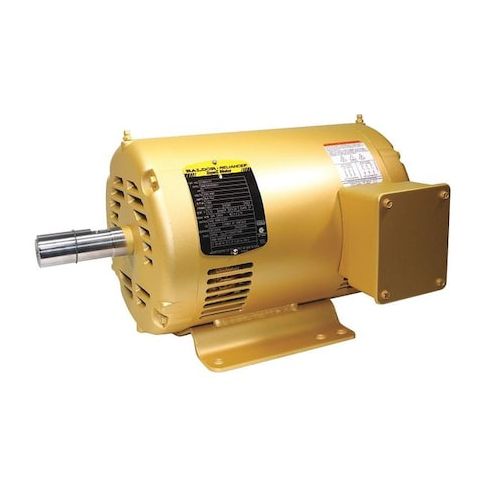

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial manufacturing, commercial buildings, and heavy-duty equipment. Its high efficiency of 89.5% reduces energy costs and minimizes environmental impact. The motor's rugged open drip-proof enclosure and rigid base mounting ensure reliable operation in harsh environments. With a service factor of 1.15, it can handle demanding applications with ease. Suitable for continuous duty, this motor is ideal for use in pumps, fans, and conveyor systems, among other applications. Its compact size and easy installation make it a convenient choice for many industries.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Open drip-proof motor enclosure design provides a safe and reliable operating environment.
- Ball motor bearings ensure smooth and quiet operation with reduced maintenance requirements.
Top product applications:
- Industrial Automation
- Pumps and Pumping Systems
- Conveyors and Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1765 rpm, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.4/4.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.80
- Package Width: 13.80
- Package Height: 12.50
- Package Weight: 69.20
Product info last updated on January 19, 2026 2:06am UTC
Category: Motors
