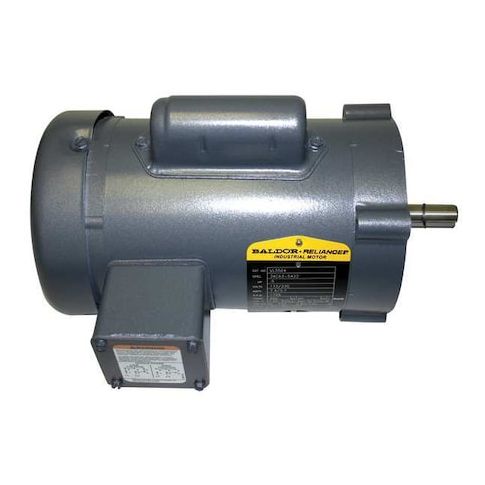

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182TC Frame MPN:VL3605T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7823724
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 182TC Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Designed for single-phase operation, this 2 hp motor is perfect for use in industrial, commercial, and residential settings. Its capacitor-start/run design provides a high starting torque and smooth operation, making it ideal for applications that require frequent starts and stops. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable performance in demanding environments. Suitable for use in applications such as pumps, fans, and conveyor systems, this motor is a cost-effective and durable solution for your needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase Motor Design for easy installation and reduced electrical complexity
- Motor Design Capacitor-Start/Run for efficient starting and reduced power consumption
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.5 A, 182TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.75
- Package Width: 11.75
- Package Height: 9.75
- Package Weight: 66.00
Product info last updated on February 21, 2026 7:56am UTC
Category: Motors
