Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143T Frame MPN:L3513T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7808132

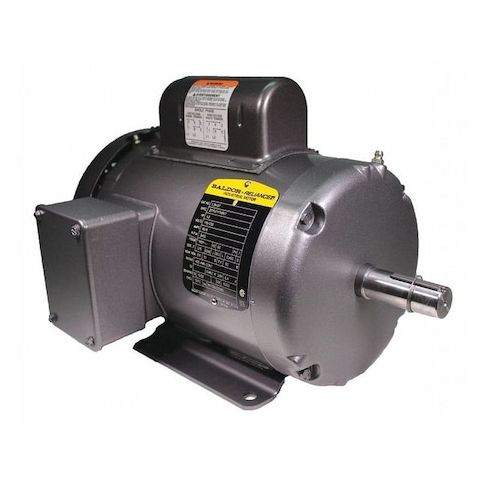

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 143T Frame
This 1.5 horsepower capacitor-start/run general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 3,600 RPM make it suitable for applications requiring high speed and efficiency. The motor is totally enclosed fan cooled, providing reliable operation in demanding environments. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor can handle continuous duty cycles. Its compact size and durable design make it an ideal choice for applications such as conveyors, pumps, and fans, where reliability and efficiency are paramount.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Motor Design Capacitor-Start/Run for efficient and reliable operation
- Continuous Duty Cycle for uninterrupted performance in demanding applications
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0 A, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 11.90
- Package Height: 10.60
- Package Weight: 41.90
Product info last updated on February 11, 2026 7:46am UTC
Category: Motors
