Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:VL3503
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7615492
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame

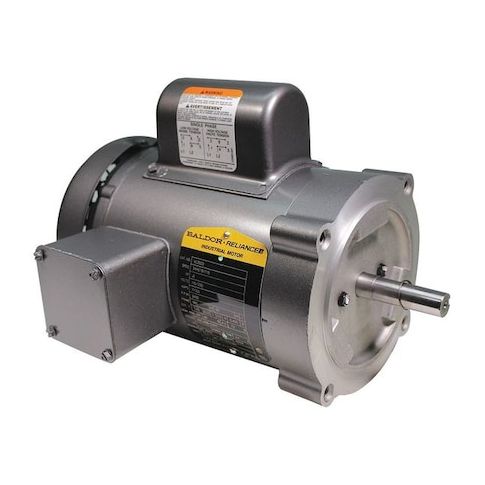

The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC voltage environments, this motor delivers 1/2 hp of power with a maximum nameplate RPM of 3,600. Its single-phase design and continuous duty cycle make it ideal for applications where consistent performance is critical. The motor's totally enclosed fan-cooled design and class B insulation ensure reliable operation in temperatures up to 40 degrees C. Perfect for use in industrial settings, this motor is a cost-effective and durable solution for applications such as conveyor systems, pumps, and fans.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Continuous duty cycle for uninterrupted operation
- Single Phase Motor Design with Capacitor-Start/Run technology for reliable starting and running capabilities
Top product applications:
- Pump applications requiring a low horsepower motor
- Fans and blowers in commercial and industrial settings
- Conveyors and conveyor systems in various industries
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 11.60
- Package Height: 10.50
- Package Weight: 22.90
Product info last updated on March 13, 2026 3:06pm UTC
Category: Motors
