Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:L3405
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7566431

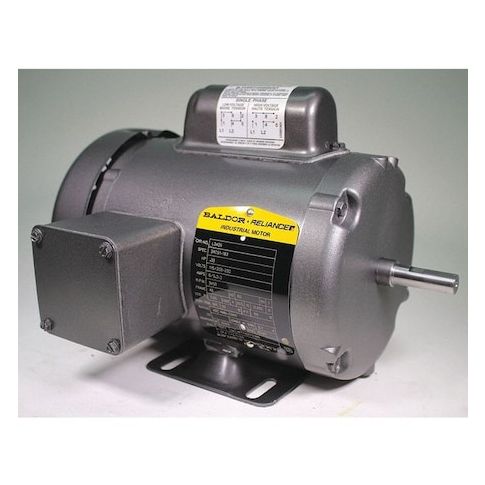

Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 48 Frame
This 1/3 horsepower capacitor-start/run motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications, including residential and light commercial use. With a 3,600 RPM nameplate speed and single-phase operation, it's perfect for powering fans, pumps, and other equipment that requires a moderate level of power. The motor's totally enclosed fan-cooled design provides protection from dust and moisture, while its continuous duty cycle and NEMA Design N rating ensure reliable operation in a range of environments. Ideal for use in garages, workshops, and small industrial settings.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Motor shaft rotation in both clockwise and counterclockwise directions for increased flexibility
- Continuous duty cycle operation for reliable and uninterrupted performance
Top product applications:
- Pump
- Conveyor System
- Fan
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.0 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 10.80
- Package Height: 9.80
- Package Weight: 20.80
Product info last updated on February 10, 2026 1:45pm UTC
Category: Motors
