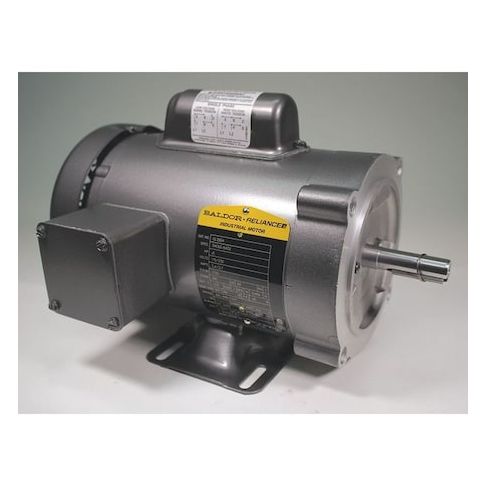

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:CL3504
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7475894
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in industrial and commercial settings, this motor can handle continuous duty cycles and operates at a maximum ambient temperature of 40 degrees C. With a compact 56C frame design and totally enclosed fan-cooled enclosure, it provides optimal performance and protection. The motor's 1/2 hp rating and 1,800 RPM nameplate speed make it ideal for applications such as pumps, fans, and conveyors. Its 1.25 service factor ensures reliable operation, even in demanding environments.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase motor design for use in a variety of applications
- Continuous Duty Cycle for reliable operation in demanding environments
Top product applications:
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
- Fans and blowers for industrial ventilation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.7 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.60
- Package Height: 10.50
- Package Weight: 28.75
Product info last updated on January 30, 2026 9:21pm UTC
Category: Motors
